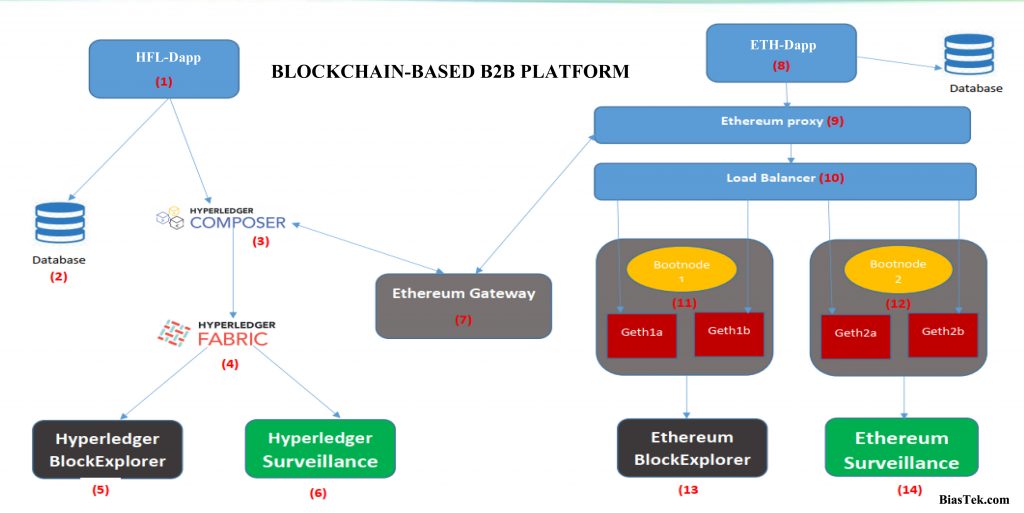

Blockchain-based B2B and B2C Platform

(1) Dapp use for B2B platform
(2) Database for B2B Platform
(3) Hyperledger Composer is APIs connect to Hyperledger Fabric
(4) Hyperledger Fabric is blockchain framework, using to store transactions
(5) Hyperledger BlockExplore is Web-based to show blockchain information such as: transaction hash, block
number…
(6) Hyperledger Surveillance is monitoring web-based to show the health of Hyperledger blockchain
(7) Ethereum gateway connect Hyperledger and Ethereum toghether
(8) Dapp use for B2C platform
(9) Ethereum proxy is APIs connect to Ethereum blockchain
(10) Load balancer is balance the nodes of Ethereum
(11) Bootnode 1 include Geth1a and Geth1b, they are Etherem blockchain to store transaction and create
tokens
(12)Bootnode 2 is similar bootnode1, this system can expand to more than 2 nodes
(13) Ethereum BlockExplore is Web-based to show blockchain information such as: transaction hash, block
number…
(14) Ethereum Surveillance is monitoring web-based to show the health of Ethereum blockchaim
